Windows Registry

Windows OS is not a human, but it also needs a brain to store all its configurations. This brain is known as the Windows Registry. The registry contains all the information that the Windows OS needs for its functioning.

Now, this Windows brain (Registry) is not stored in one single place, unlike a human brain, which is situated in one single place inside the head. It is made up of several separate files, each storing information on different configuration settings. These files are known as Hives.

Let's take a look at all these hives in the table below. The first column contains the hive names, the second column contains the type of configuration settings that each hive stores, and the third column contains the location of each hive on the disk.

Hive Name	Contains	Location
SYSTEM	Services Mounted Devices Boot Configuration Drivers Hardware	C:\Windows\System32\config\SYSTEM
SECURITY	Local Security Policies Audit Policy Settings	C:\Windows\System32\config\SECURITY
SOFTWARE	Installed Programs OS Version and other info Autostarts Program Settings	C:\Windows\System32\config\SOFTWARE
SAM	Usernames and their Metadata Password Hashes Group Memberships Account Statuses	C:\Windows\System32\config\SAM
NTUSER.DAT	Recent Files User Preferences User-specific Autostarts	C:\Users\username\NTUSER.DAT
USRCLASS.DAT	Shellbags Jump Lists	C:\Users\username\AppData\Local\Microsoft\Windows\USRCLASS.DAT

Note: The configuration settings stored in each hive listed above are just a few examples. Each hive stores more than these.

Now that you understand where these Registry Hives are stored, you may be tempted to double-click and open these files from their respective locations to view the data they contain. But here's the twist. These Registry Hives contain binary data that cannot be opened directly from the file. So, double-clicking them would only display things you won't ever understand. Then how can we possibly view the registry data?

The Windows OS has a built-in tool known as the Registry Editor, which allows you to view all the registry data available in these hives. You can go ahead and open this tool by simply typing Registry Editor in your search bar.

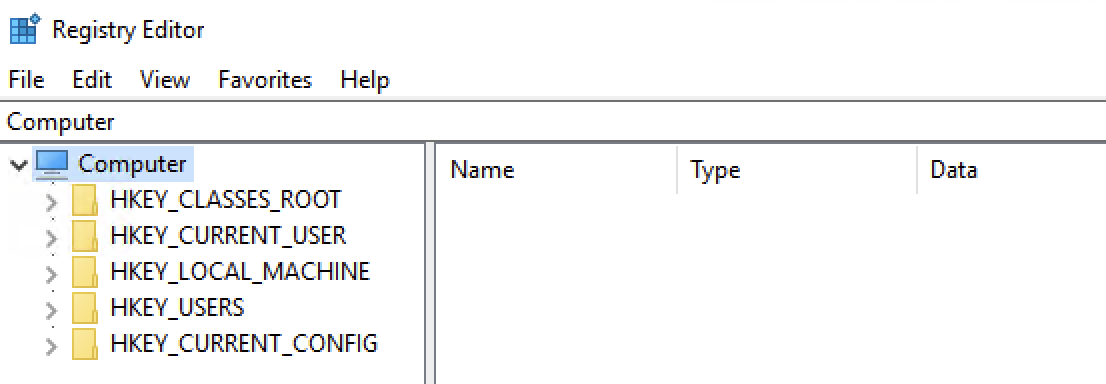

As you can see in the Registry Editor screenshot above, there are some folders named HKEY_LOCAL_MACHINE, HKEY_CURRENT_USER, and more. But didn't we expect SYSTEM, SECURITY, SOFTWARE, etc., to be seen so we can view their data? Don't worry, Windows organizes all the Registry Hives into these structured Root Keys. Instead of seeing the Registry Hives, you would always get these registry root keys whenever you open the registry. Now, which registry key contains which registry hive's data? To answer this question, we have a table below that maps the registry keys with their respective Registry Hives.

Hive on Disk	Where You See It in Registry Editor
SYSTEM	HKEY_LOCAL_MACHINE\SYSTEM
SECURITY	HKEY_LOCAL_MACHINE\SECURITY
SOFTWARE	HKEY_LOCAL_MACHINE\SOFTWARE
SAM	HKEY_LOCAL_MACHINE\SAM
NTUSER.DAT	HKEY_USERS\<SID> and HKEY_CURRENT_USER
USRCLASS.DAT	HKEY_USERS\<SID>\Software\Classes

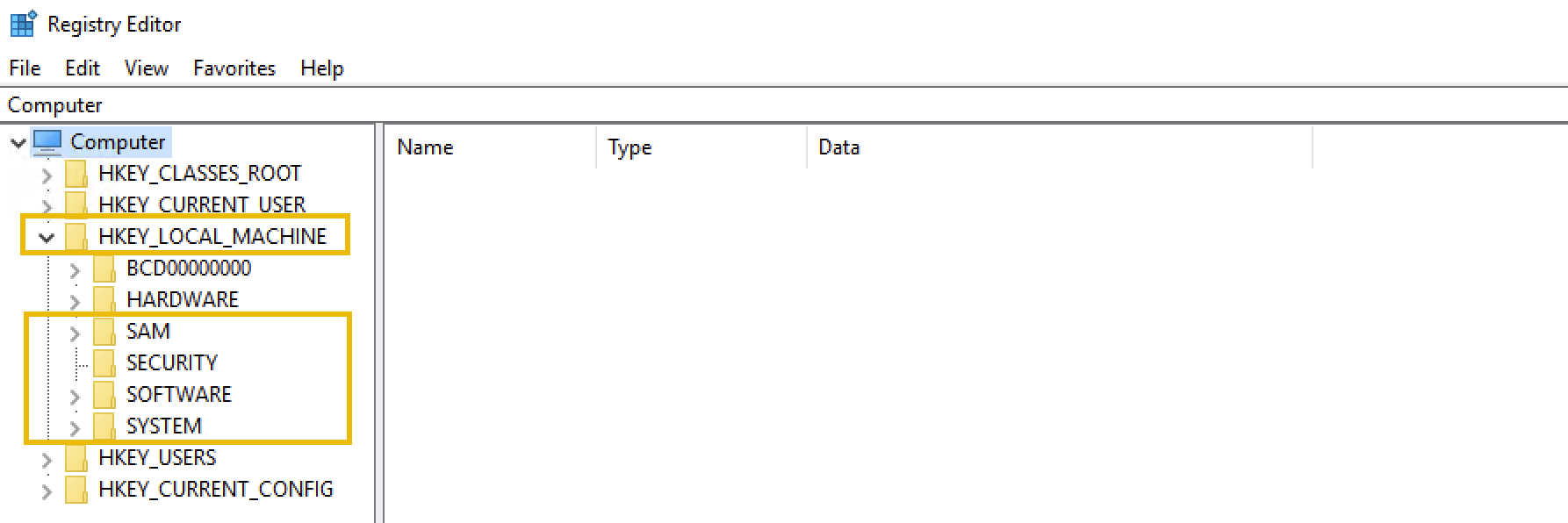

In the table above, you can see that most of the Registry Hives are located under the HKEY_LOCAL_MACHINE (HKLM) key. We can verify this by clicking on the little toggle arrow at the on the left side of the HKLM key in the Registry Editor, as shown in the screenshot below:

As you can see, the SYSTEM, SOFTWARE, SECURITY, and SAM hives are under the HKLM key. NTUSER.DAT and USRCLASS.DAT are located under HKEY_USERS (HKU) and HKEY_CURRENT_USER (HKCU).

Note: The other two keys (HKEY_CLASSES_ROOT (HKCR) and HKEY_CURRENT_CONFIG (HKCC)) are not part of any separate hive files. They are dynamically populated when Windows is running.

So far, we have learned what the registry is, where it is located (in separate Registry Hives), and how to view the registry through the Registry Editor, which displays the registry keys backed by these Registry Hives.

Now, let's see how we can actually extract information from the registry. Think of it like navigating to different files in the file explorer. If you know the path where the file is stored, you can go directly to that location to find the file. Let's take a look at a few examples:

Example 1: View Connected USB Devices

The registry stores information on the USB devices that have been connected to the system. This information is present in the SYSTEM hive. To view it:

1. Open the Registry Editor.

2. Navigate to the following path: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Enum\USBSTOR.

3. Here you will see the USB devices' information (make, model, and device ID).

4. Each device will have the following:

   1. A main subkey that is the identification of the type and manufacturer of the USB device.

   2. A subkey under the above (for example) that represents the unique devices under this model.

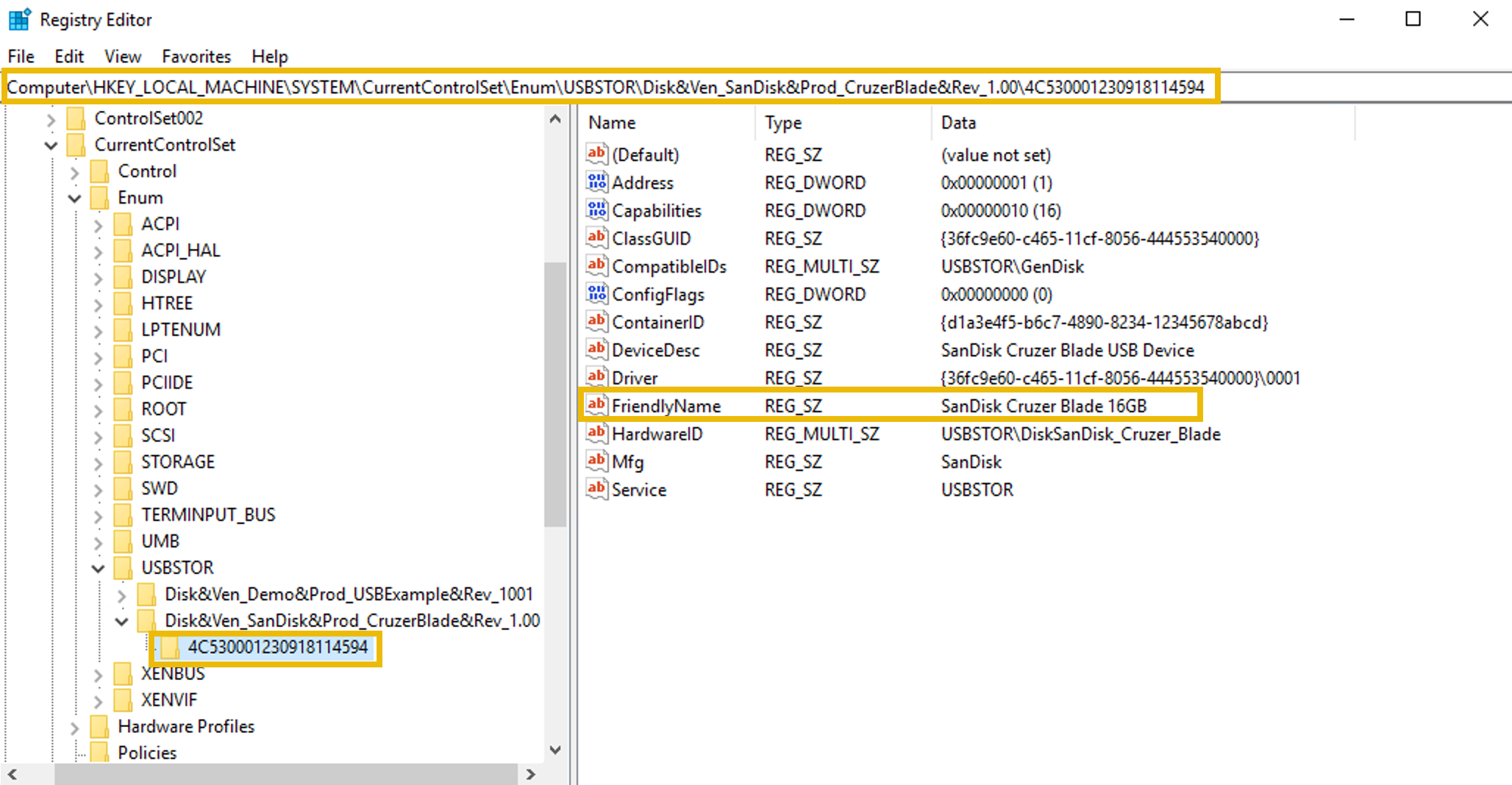

Registry Editor screenshot showing the resgitry key that has the information of the USBs that have been attached.

Example 2: View Programs Run by the User

The registry stores information on the programs that the user ran using the Run dialog Win + R. This information is present in the NTUSER.DAT hive. To view it:

1. Open the Registry Editor.

2. Navigate to the following path: HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\RunMRU.

3. Here you will see the list of commands typed by the user in the Run dialog to run applications.

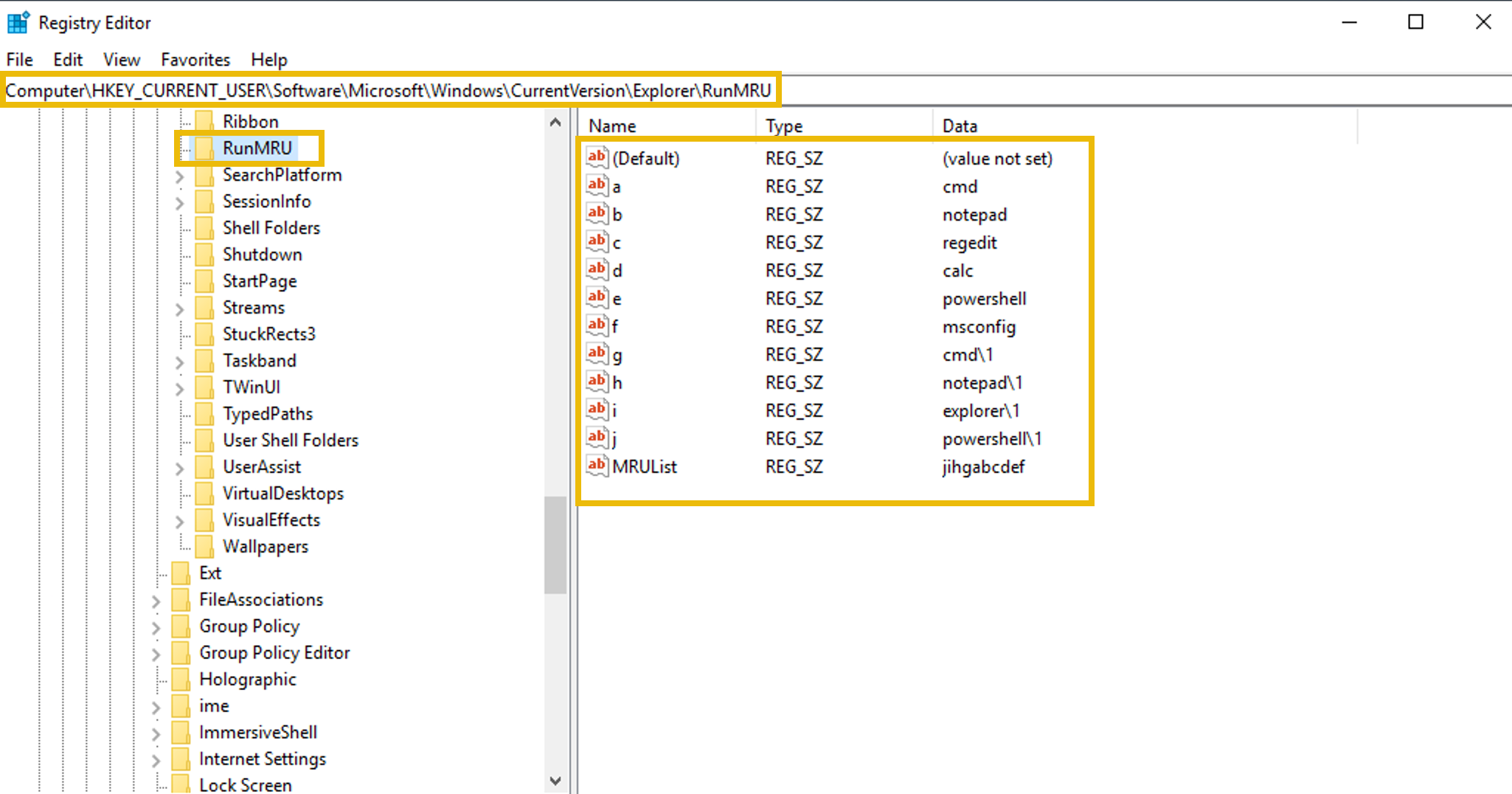

Registry Editor screenshot showing the resgitry key that has the information of the commands typed by the user in the Run Dialog.

Registry Forensics

Since the registry contains a wide range of data about the Windows system, it plays a crucial role in forensic investigations. Registry forensics is the process of extracting and analyzing evidence from the registry. In Windows digital forensic investigations, investigators analyze registry, event logs, file system data, memory data, and other relevant data to construct the whole incident timeline.

The table below lists some registry keys that are particularly useful during forensic investigations.

Registry Key	Importance
HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\UserAssist	It stores information on recently accessed applications launched via the GUI.
HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\TypedPaths	It stores all the paths and locations typed by the user inside the Explorer address bar.
HKLM\Software\Microsoft\Windows\CurrentVersion\App Paths	It stores the path of the applications.
HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\WordWheelQuery	It stores all the search terms typed by the user in the Explorer search bar.
HKLM\Software\Microsoft\Windows\CurrentVersion\Run	It stores information on the programs that are set to automatically start (startup programs) when the users logs in.
HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\RecentDocs	It stores information on the files that the user has recently accessed.
HKLM\SYSTEM\CurrentControlSet\Control\ComputerName\ComputerName	It stores the computer's name (hostname).
HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall	It stores information on the installed programs.

Numerous other registry keys can be used for extracting important evidence from a Windows system during an incident investigation. The investigation of these registry keys during forensics cannot be done via the built-in Registry Editor tool. It is because the Registry analysis cannot be done on the system under investigation (due to the chance of modification), so we collect the Registry Hives and open them offline into our forensic workstation. However, the Registry Editor does not allow opening offline hives. The Register editor also displays some of the key values in binary which are not readable.

Practical

Forensics - Registry FurensicsTryHackMe

In this practical example, we will use the Registry Explorer tool to analyze the Registry Hives from the compromised system, dispatch-srv01. The Registry Hives have been collected and are available in the folder C:\Users\Administrator\Desktop\Registry Hives on the machine attached to this task.

Step 1: Launch Registry Explorer

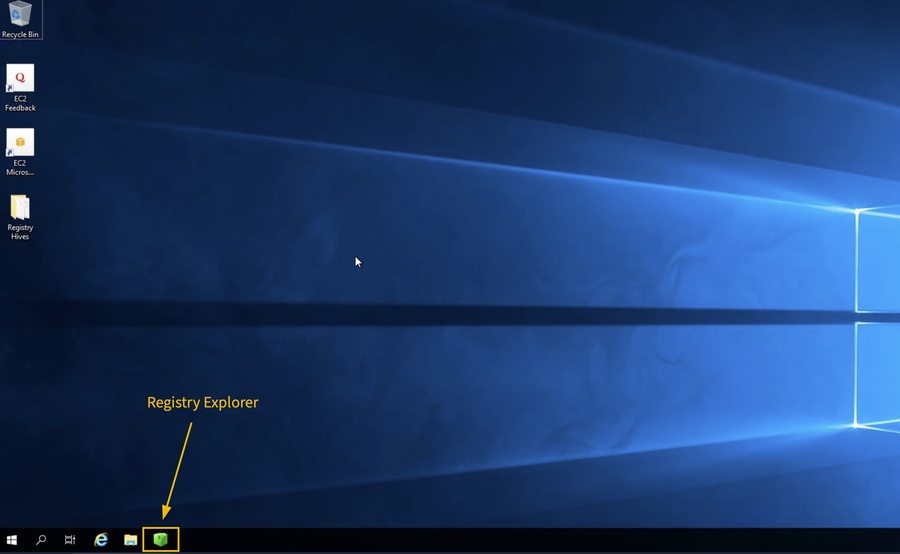

Click on the Registry Explorer icon pinned to the taskbar of the target machine to launch it.

Step 2: Load the Registry Hives

Once Registry Explorer opens with an empty interface, follow these steps to load the hives:

1. Click the File option from the top menu

2. Select Load hive from the dropdown

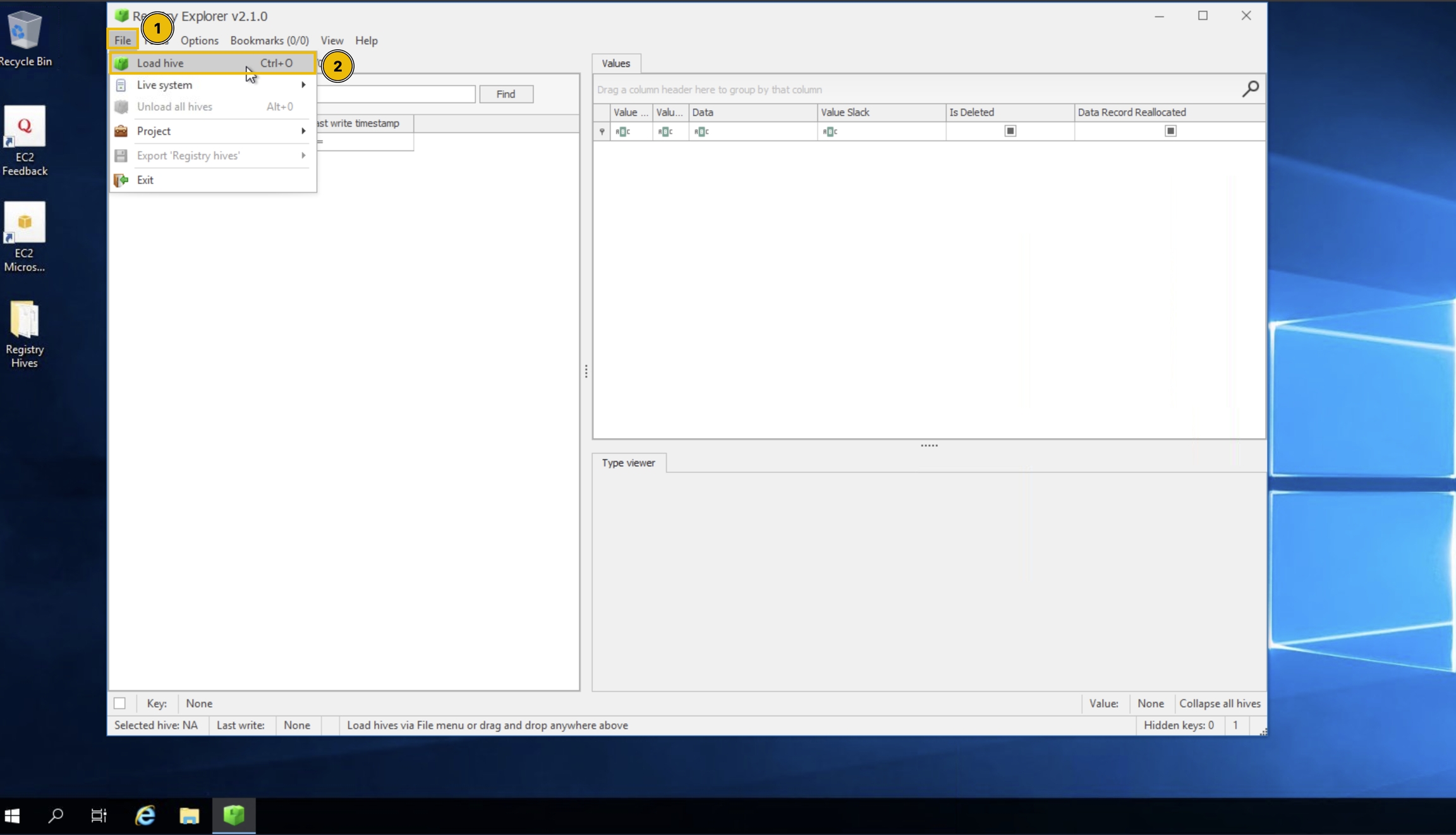

Registry Explorer screenshot with the option of loading offline hives highlighted.

Step 3: Handling Dirty Hives

While loading Registry Hives, it is important to know that these Registry Hives can sometimes be "dirty" when collected from live systems, meaning they may have incomplete transactions. To ensure clean loading:

1.On the Load hives pop-up, navigate to C:\Users\Administrator\Desktop\Registry Hives 2. Select the desired hive file (e.g., SYSTEM) 3. Hold SHIFT, then press Open to load associated transaction log files. This ensures you get a clean, consistent hive state for analysis.

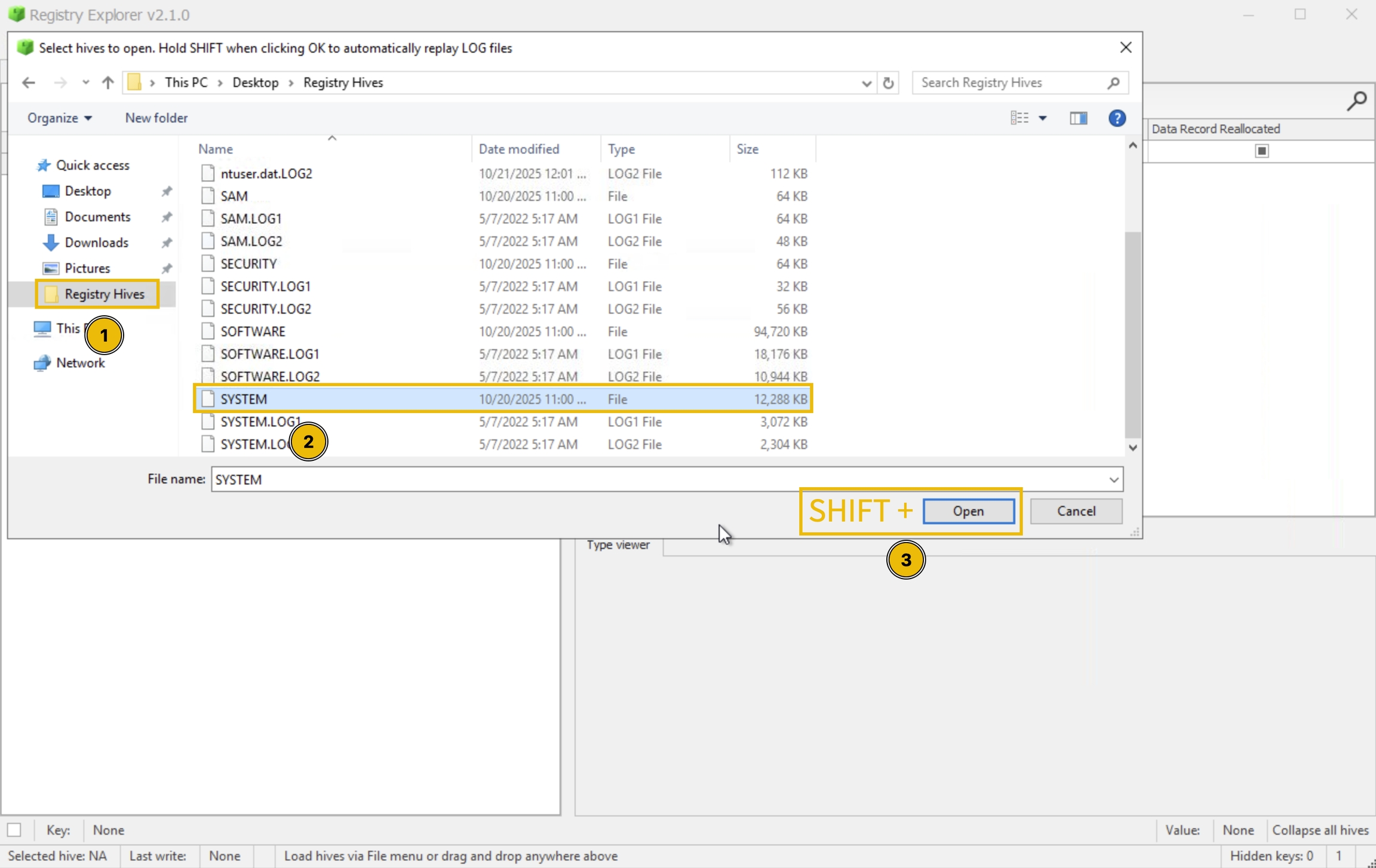

Screenshot showing the process of loading offline registry hives in the registry explorer tool.

4. You'll be prompted with a message indicating successful replay for transaction logs 5. Repeat the same process for all the other hives you want to load

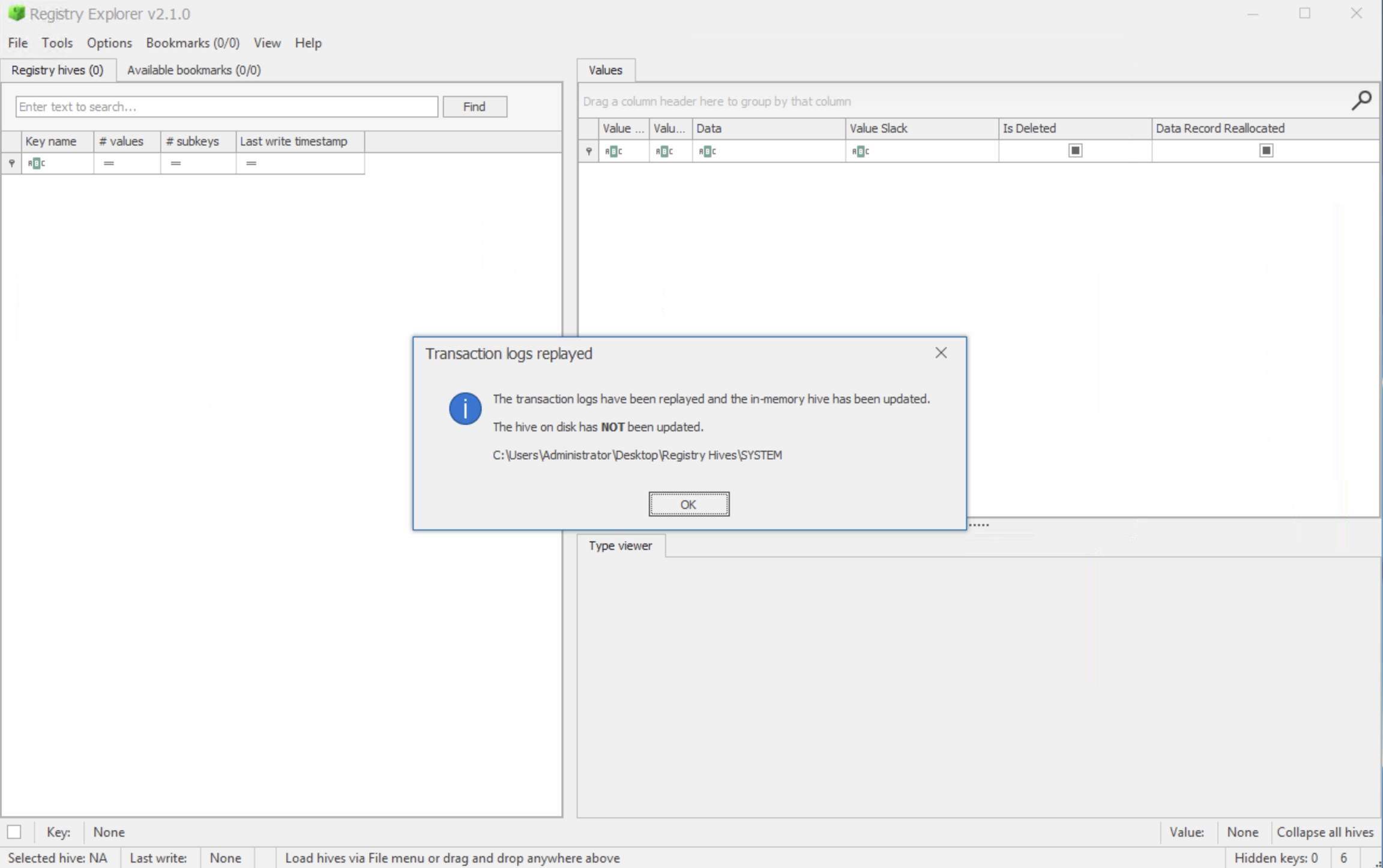

Registry Explorer screenshot showing the "transcation logs replayed" prompt.

Step 4: Investigating Registry Keys

After loading the SYSTEM hive, you can navigate to specific registry keys for investigation. Let's practice by finding the computer name:

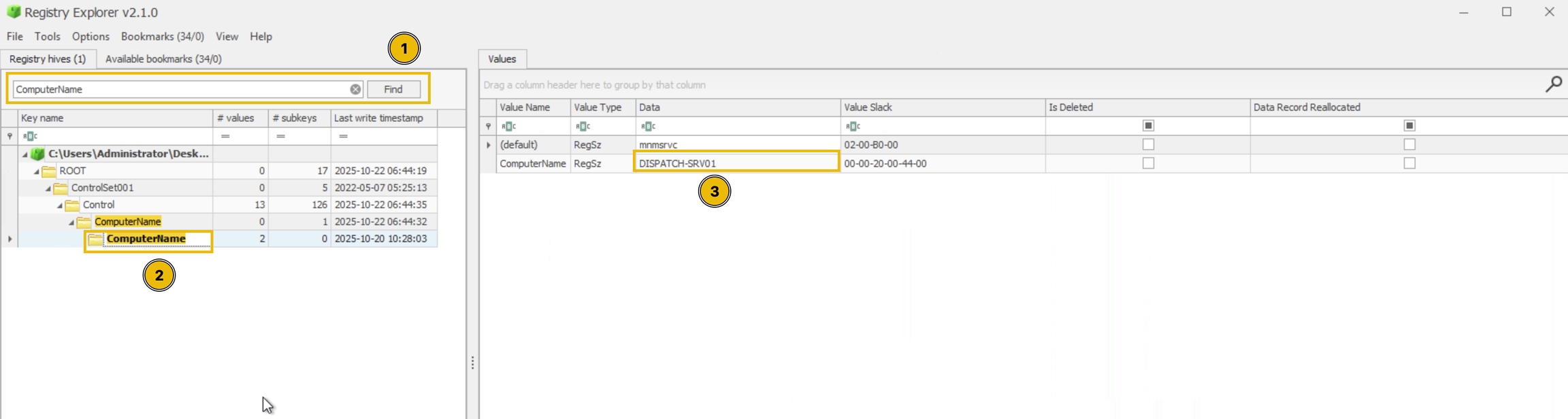

• Navigate to: ROOT\ControlSet001\Control\ComputerName\ComputerName. Or you can also just type "ComputerName" in the search bar to quickly locate the key, as shown below.

Registry Editor screenshot showing the navigation to the resgitry key that has the information of the computer's name.

• Alternatively, you can click the Available Bookmarks tab and navigate to the ComputerName key from there.

• Examine the values to identify the system's hostname. Under the Data value, you'll find DISPATCH-SRV01.

Registry Editor screenshot showing the resgitry key that has the information of the computer's name.

Now that you understand how to load hives and navigate in Registry Explorer, you're ready to begin your forensic investigation and uncover evidence of the TBFC intrusion on the Dispatch server!

Note: The abnormal activity on the dispatch-srv01 started on 21st October, 2025.

Tip: The table given in the Registry Forensics explanation is going to be your friend.
